VFD + Models With PM Motor
| VFD MODEL |
MOTOR |
WORKING PRESSURE |
MAX PRESSURE |
FAD |
| kW |
HP |
Kg/cm² |
Kg/cm² |
cfm |

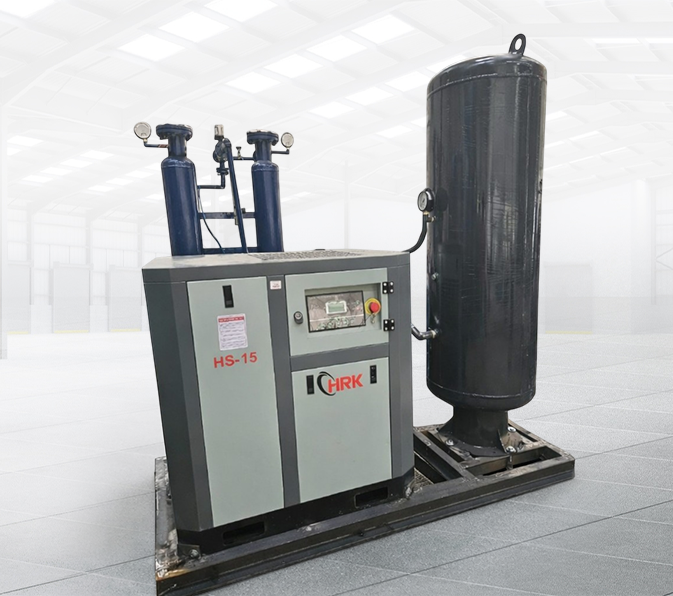

| HS 15 VFD+ |
11 |
15 |
7 |
7.5 |
27-70 |
| 11 |
15 |
8 |
8.5 |
27-64 |
| 11 |
15 |
9.5 |
10 |
27-55 |
| 11 |
15 |
12.5 |
13 |
27-45 |

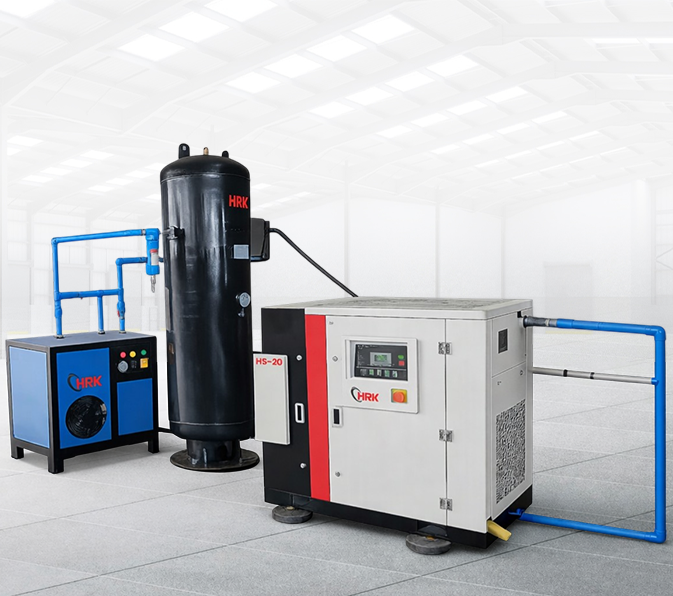

| HS 20 VFD+ |
15 |
20 |
7 |
7.5 |
38-95 |
| 15 |
20 |
8 |
8.5 |
38-89 |
| 15 |
20 |
9.5 |
10 |
38-77 |
| 15 |
20 |
12.5 |
13 |
38-67 |
| HS 25 VFD+ |
18 |
25 |
7 |
7.5 |
50-120 |
| 18 |
25 |
8 |
8.5 |
50-112 |
| 18 |
25 |
9.5 |
10 |
50-100 |
| 18 |
25 |
12.5 |
13 |
50-84 |
| HS 30 VFD+ |
22 |
30 |
7 |
7.5 |
57-140 |
| 22 |
30 |
8 |
8.5 |
57-135 |
| 22 |
30 |
9.5 |
10 |
57-114 |
| 22 |
30 |
12.5 |
13 |
57-94 |
| HS 40 VFD+ |
30 |
40 |
7 |
7.5 |
86-205 |
| 30 |
40 |
8 |
8.5 |
86-186 |
| VFD MODEL |
MOTOR |
WORKING PRESSURE |
MAX PRESSURE |
FAD |
| kW |
HP |
Kg/cm² |
Kg/cm² |
cfm |
| HS 40 VFD+ |
30 |
40 |
9.5 |
10 |
86-172 |
| 30 |
40 |
12.5 |
13 |
86-140 |
| HS 50 VFD+ |
37 |
50 |
7 |
7.5 |
107-253 |
| 37 |
50 |
8 |
8.5 |
107-235 |
| 37 |
50 |
9.5 |
10 |
107-215 |
| 37 |
50 |
12.5 |
13 |
107-185 |
| HS 60 VFD+ |
45 |
60 |
7 |
7.5 |
127-301 |
| 45 |
60 |
8 |
8.5 |
127-276 |
| 45 |
60 |
9.5 |
10 |
127-254 |
| 45 |
60 |
12.5 |
13 |
127-206 |
| HS 75 VFD+ |
55 |
75 |
7 |
7.5 |
160-380 |
| 55 |
75 |
8 |
8.5 |
160-358 |
| 55 |
75 |
9.5 |
10 |
160-321 |
| 55 |
75 |
12.5 |
13 |
160-265 |
| HS 100 VFD+ |
75 |
100 |
7 |
7.5 |
224-520 |
| 75 |
100 |
8 |
8.5 |
224-490 |
| 75 |
100 |
9.5 |
10 |
224-452 |
| 75 |
100 |
12.5 |
13 |
224-390 |
