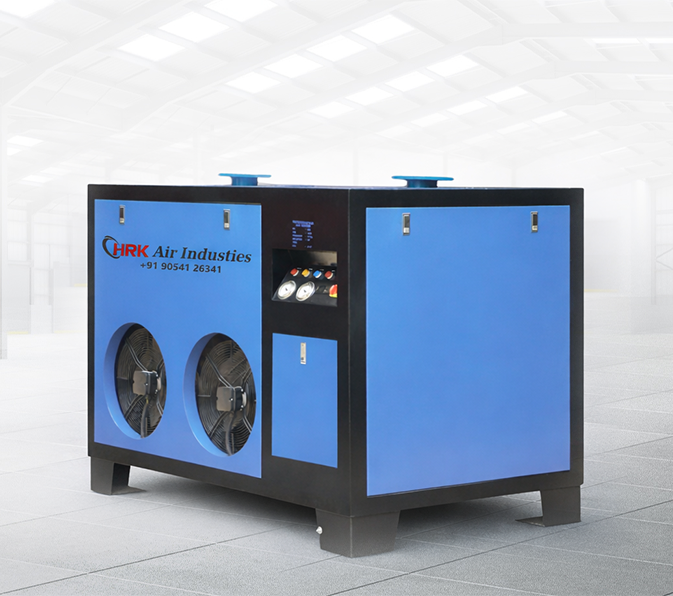

An air dryer is an essential component of compressed air systems that removes moisture, humidity, and unwanted water particles from compressed air. Moisture present in compressed air can damage machinery, pneumatic tools, and production processes. Using an air dryer improves air quality and significantly increases the lifespan of equipment.
Industrial air dryers are designed to provide a consistent supply of dry air, helping prevent issues such as corrosion, pressure loss, and unplanned downtime. They are an ideal solution for manufacturing units, processing plants, and automation systems.
An air dryer is designed to effectively remove moisture and water vapor from compressed air systems. When an air compressor compresses air, the humidity present in the air condenses, which can damage pipelines, pneumatic tools, and machinery. An air dryer eliminates this moisture through a controlled process, ensuring a supply of dry and clean compressed air.
| Refrigerated Air Dryer Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| Base Model | Nominal Capacity | Max. Pressure | Air Connection | Rated Power in kW | ||||
| CFM | M³/HR | Bar (g) | PSI (G) | Air Cooled | Water Cooled | |||
| HRK-20 | 20 | 34 | 16 | 232 | ½" BSP (F) | 0.21 | - | |
| HRK-40 | 40 | 68 | 16 | 232 | ½" BSP (F) | 0.36 | - | |
| HRK-60 | 60 | 102 | 16 | 232 | ½" BSP (F) | 0.45 | - | |
| HRK-80 | 80 | 136 | 16 | 232 | 1" BSP (F) | 0.60 | - | |
| HRK-100 | 100 | 170 | 16 | 232 | 1" BSP (F) | 0.67 | - | |
| HRK-150 | 150 | 255 | 16 | 232 | 1½" BSP (F) | 1.00 | - | |
| HRK-200 | 200 | 340 | 16 | 232 | 1½" BSP (F) | 1.40 | - | |
| HRK-250 | 250 | 425 | 16 | 232 | 2" BSP (F) | 1.70 | - | |
| HRK-300 | 300 | 510 | 16 | 232 | 2" BSP (F) | 1.80 | - | |
| HRK-400 | 400 | 680 | 16 | 232 | 2" BSP (F) | 2.40 | 1.80 | |
| HRK-500 | 500 | 850 | 16 | 232 | 3" NB ASME Flg | 2.70 | 2.30 | |
| Flow capacities in air suction of FAD 20 C (68°F), 1 bar (14.5 psi) at the operating conditions mentioned below | ||||||||
| * Rated Power is the max power consumed at 45 C inlet & 45 C ambient temp. | ||||||||
| * Voltage range 180 to 240 V for 1 Ph. & 380-420 V 3 Ph. | ||||||||
